Length of Boat.............................................. .... 22’5”
Width Amidship.......................................... ...... 102”
Boat Weight............................................ .. 3,900 lbs.

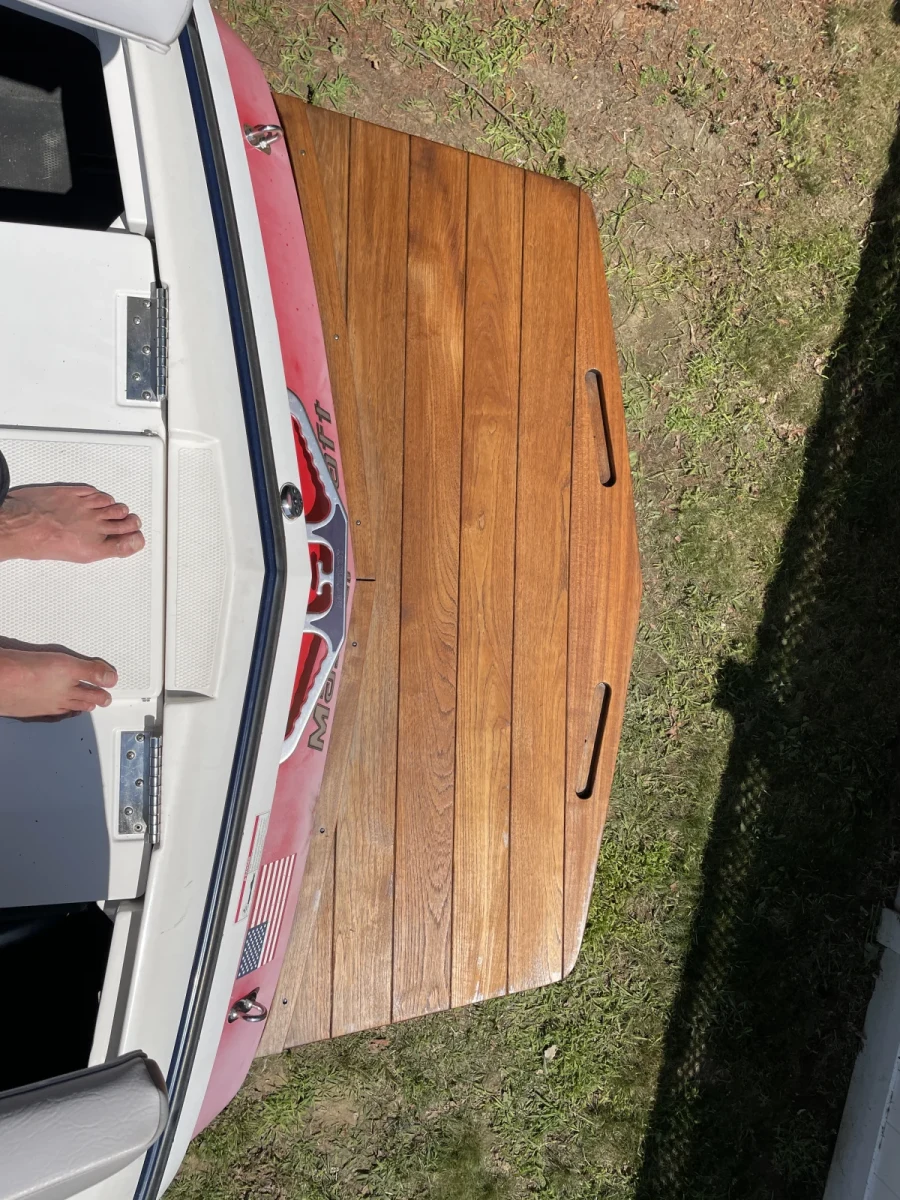

Length of Boat w/Platform................................. 24’8”
Towing Length............................................ .... 23’10”
Towing Width............................................. ......100”
Fuel Capacity.......................................... . 60 gallons
Total Weight Capacity ............16 people or 2,475 lbs.

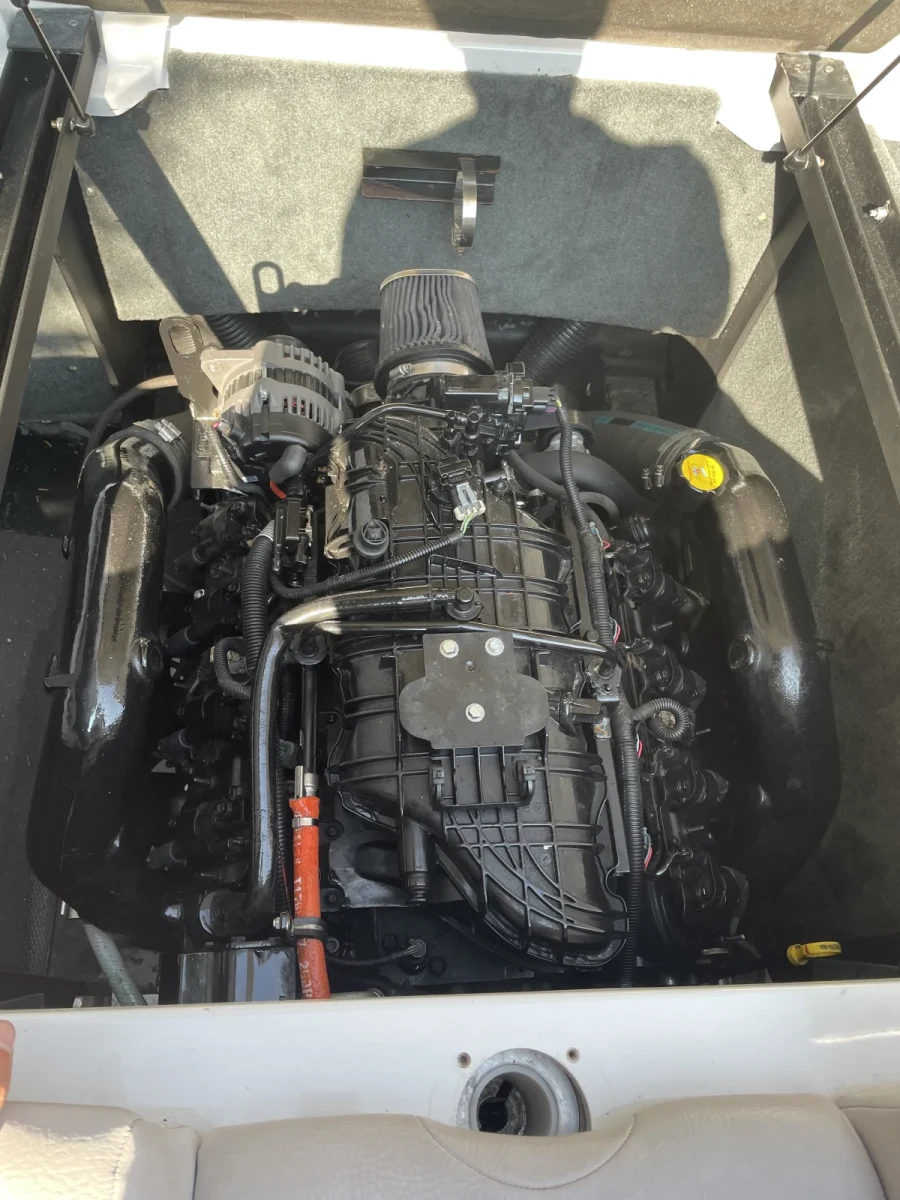

MasterCraft Power LY6 multi-port EFI 6.0 Liter V-8 Engine
Displacement .................................... 364 C.I.D. (6.01 litres)—400 horsepower
.................................................. .............................................At 5200 RPM
Bore .................................................. .............................................. 3.898”
Stroke .................................................. .............................................3.623 ”
Compression Ratio .................................................. ...............................10:1
Cylinder Head Material .................................................. ................. Cast Iron
Block Material .................................................. .............................. Cast Iron
Compression Pressure .................................................. ........ 100 PSI minimum
Maximum Allowable Compression Variation ........... Highest to lowest within 70%
RPM Range at WOT .................................................. ........... 5200-5600 RPM
Oil Pressure (Hot) .................................................. ..........20 PSI at 2000 RPM
Propshaft Rotation .................................................. ......................... Left-hand
Fuel Requirement .....................................93 Octant (R+M)/2 (RFG acceptable)
Fuel Pressure: Operating Pressure .................................................. ... 53-58 PSI
Fuel Pump Volume .................................................. .........1 pint in 20 seconds
Type of Fuel Induction ...............Marine Electronic Fuel Injection Phased Port Type
Electronic Control Module .........................Delco Electronics Waterproof Marine
Controller (MEFI 5A)
Ignition System .................................................. ...................... Coil near plug
Alternator Output Rating............................................ ... 90 amps at 2000 RPM
Thermostat .................................................. ...............................160 degrees
Spark Plug Type .................................................. ..........................AC41-985
Recommended Plug Gap .................................................. .................. 0.050”
Firing Order .................................................. ......................... 1-8-7-2-6-5-4-3
Minimum Battery Rating ....................750 cold cranking amps for 30 seconds at
0 degrees Fahrenheit or better
Oil Capacity .........................5.5 quarters with fi lter change—verify with dipstick
Oil Type .................................................. ........... SAE 15W40, SJ, CG4, CH4
Oil Filter Type .................................................. ....................AC PF 25 or PZ3
Transmission Fluid Capacity ................2 ½ to 3 qts 15W40 motor oil with 1.5:1
Transmission; 4-5 qts. SAE 15W40 Motor oil with V-drive transmission
Initial Timing ................Factory set and computer controlled—not fi eld adjustable
Total Ignition Advance ..........................Varies as a function of input information
Cooling System—Engine .................................................. ..Raw Water Cooled
Cooling System—Engine Oil/Transmission............Raw Water—Full Flow Tandem

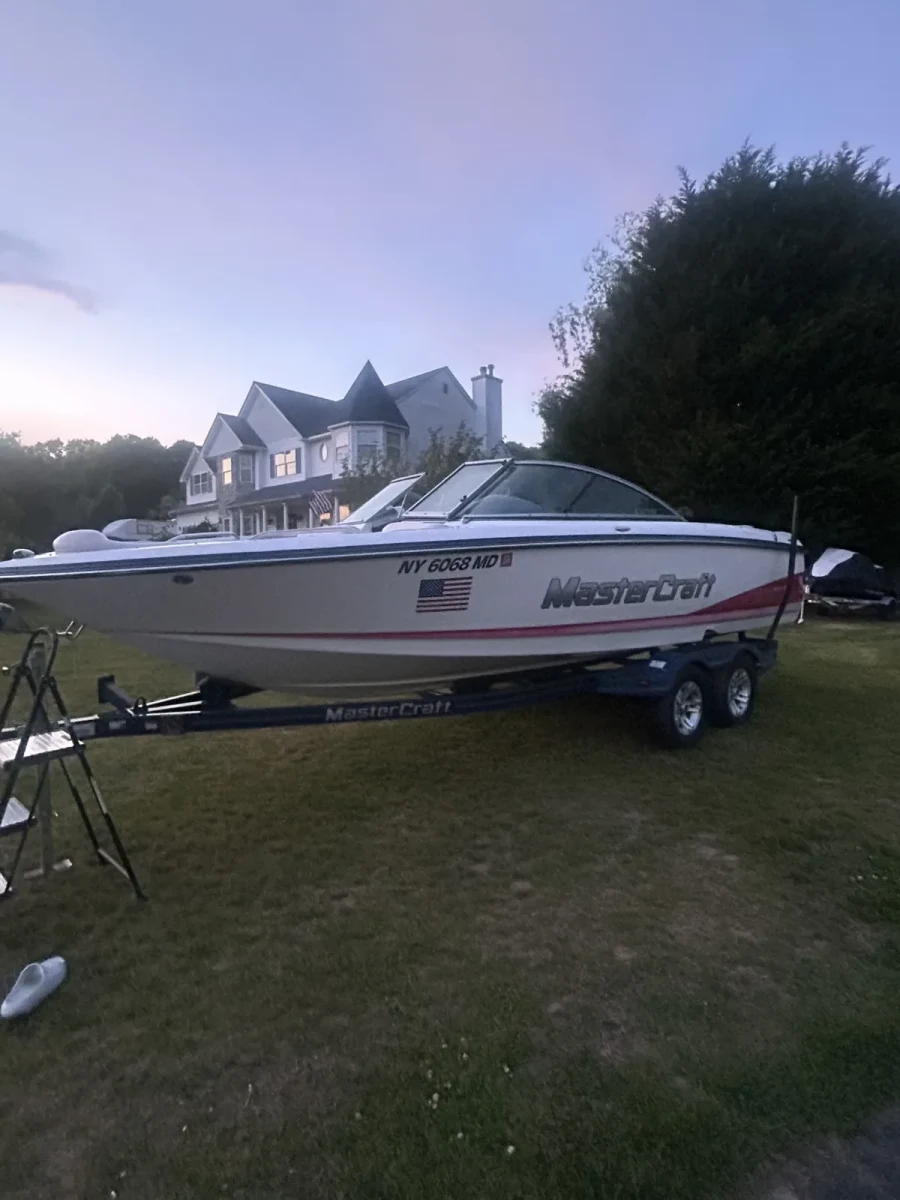

● Model: 2007 MasterCraft Trailer
Pontoons
